PEM STACKS
Portable Fuel Cell System - 1.5 kW
Summary
1.5kW Portable Fuel Cell System (based on rated power)
Stack composed of titanium separators in closed-cathode type
Stack warranty life time 3,000 hours
Obtain European certifcation including performance, durability, and electromagnetic waves, etc
Full weight 55 kg
Dimension (W x L x H, mm) 830 x 400 x 400 mm
PEM STACKS
Portable Fuel Cell System - 1.5 kW
Summary
1.5kW Portable Fuel Cell System (based on rated power)
Stack composed of titanium separators in closed-cathode type
Stack warranty life time 3,000 hours
Obtain European certifcation including performance, durability, and electromagnetic waves, etc
Full weight 55 kg
Dimension (W x L x H, mm) 830 x 400 x 400 mm
PEM STACKS
Portable Fuel Cell System - 1.5 kW
Summary
1.5kW Portable Fuel Cell System (based on rated power)
Stack composed of titanium separators in closed-cathode type
Stack warranty life time 3,000 hours
Obtain European certifcation including performance, durability, and electromagnetic waves, etc
Full weight 55 kg
Dimension (W x L x H, mm) 830 x 400 x 400 mm
PEM STACKS
Portable Fuel Cell System - 1.5 kW
Summary
1.5kW Portable Fuel Cell System (based on rated power)
Stack composed of titanium separators in closed-cathode type
Stack warranty life time 3,000 hours
Obtain European certifcation including performance, durability, and electromagnetic waves, etc
Full weight 55 kg
Dimension (W x L x H, mm) 830 x 400 x 400 mm
Description
Technical Specfications
Downloads

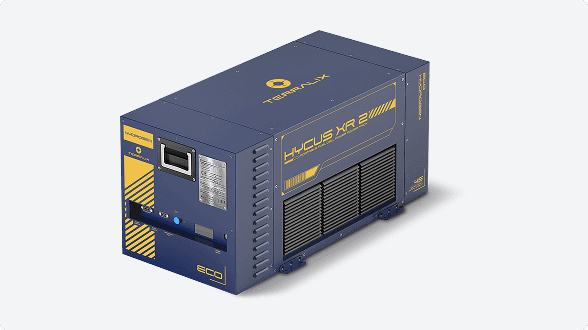

Portable Fuel Cell System - 1.5 kW
The HYCUS XR2 model is a portable, closed-cathode type air-cooled fuel cell system designed to deliver stable power output and high durability, certified to meet rigorous European standards.
Rated power output of 1.5 kW (Max 2.0 kW)
Moisture-free operation with proprietary air channel design
Stack built with titanium separators for enhanced durability
Full system weight: 55 kg
Dimensions: 830 x 400 x 400 mm
Certified for performance, durability, and EMC compliance
Stack warranty life: 3,000 hours
Built for rugged reliability, HYCUS XR2 is ideal for mobile and portable power applications requiring CE certification and robust performance.
Key features
Closed-Cathode Air-Cooled Design
Independent channels for reactant and cooling air improve thermal control and maintain stable output under varying environmental conditions.
Moisture-free operation eliminates the need for an external humidifier.
Titanium separators reduce weight while increasing stack durability.
Certified for Safety & Performance
CE Certified: Includes validation for performance, durability, and electromagnetic compatibility
Safety: Complies with IEC 62282-5-100 for portable fuel cell systems
EMC Compliance: IEC 61000-6-4:2019 & IEC 61000-6-2:2019
Shock & Vibration: IEC 62282-5-100 ANNEX B (UL2267 standard)
Durability & Longevity
Stack-level cumulative operation: 1,000+ hours with hundreds of on/off cycles
System-level operation: 720+ hours with over 100 cycles
Technical Specifications
Performance
- Rated Power: 1.5 kW
- Maximum Power: 2.0 kW
- Voltage Range: 50 ~ 55 VDC
Size & Configuration
- Full Weight: 55 kg
- Dimensions (W x L x H): 830 x 400 x 400 mm
- Custom case design available upon request
Fuel
- Fuel Type: Pure Hydrogen (>99.9%)
- Operating Pressure: 1 ~ 2 bar.g
- Hydrogen Consumption: 70 g/kWh
External Battery
- Requires a connected basic battery (battery not included)
- Battery options available through prior consultation
Application areas
Portable and Mobile Power Systems
Field Deployable Units
Backup Systems for Industrial and Remote Use
Contact us
TerraLIX provide advanced, application-ready air-cooled fuel cell solutions backed by deep industry knowledge and engineering experience. To learn more about how HYCUS XR2 can meet your specific power requirements, please fill out the contact form on this page.
Description
Technical Specfications
Downloads
Portable Fuel Cell System - 1.5 kW
The HYCUS XR2 model is a portable, closed-cathode type air-cooled fuel cell system designed to deliver stable power output and high durability, certified to meet rigorous European standards.
Rated power output of 1.5 kW (Max 2.0 kW)
Moisture-free operation with proprietary air channel design
Stack built with titanium separators for enhanced durability
Full system weight: 55 kg
Dimensions: 830 x 400 x 400 mm
Certified for performance, durability, and EMC compliance
Stack warranty life: 3,000 hours
Built for rugged reliability, HYCUS XR2 is ideal for mobile and portable power applications requiring CE certification and robust performance.
Key features
Closed-Cathode Air-Cooled Design
Independent channels for reactant and cooling air improve thermal control and maintain stable output under varying environmental conditions.
Moisture-free operation eliminates the need for an external humidifier.
Titanium separators reduce weight while increasing stack durability.
Certified for Safety & Performance
CE Certified: Includes validation for performance, durability, and electromagnetic compatibility
Safety: Complies with IEC 62282-5-100 for portable fuel cell systems
EMC Compliance: IEC 61000-6-4:2019 & IEC 61000-6-2:2019
Shock & Vibration: IEC 62282-5-100 ANNEX B (UL2267 standard)
Durability & Longevity
Stack-level cumulative operation: 1,000+ hours with hundreds of on/off cycles
System-level operation: 720+ hours with over 100 cycles
Technical Specifications
Performance
- Rated Power: 1.5 kW
- Maximum Power: 2.0 kW
- Voltage Range: 50 ~ 55 VDC
Size & Configuration
- Full Weight: 55 kg
- Dimensions (W x L x H): 830 x 400 x 400 mm
- Custom case design available upon request
Fuel
- Fuel Type: Pure Hydrogen (>99.9%)
- Operating Pressure: 1 ~ 2 bar.g
- Hydrogen Consumption: 70 g/kWh
External Battery
- Requires a connected basic battery (battery not included)
- Battery options available through prior consultation
Application areas
Portable and Mobile Power Systems
Field Deployable Units
Backup Systems for Industrial and Remote Use
Contact us
TerraLIX provide advanced, application-ready air-cooled fuel cell solutions backed by deep industry knowledge and engineering experience. To learn more about how HYCUS XR2 can meet your specific power requirements, please fill out the contact form on this page.
Description
Technical Specfications
Downloads
Portable Fuel Cell System - 1.5 kW
The HYCUS XR2 model is a portable, closed-cathode type air-cooled fuel cell system designed to deliver stable power output and high durability, certified to meet rigorous European standards.
Rated power output of 1.5 kW (Max 2.0 kW)
Moisture-free operation with proprietary air channel design
Stack built with titanium separators for enhanced durability
Full system weight: 55 kg
Dimensions: 830 x 400 x 400 mm
Certified for performance, durability, and EMC compliance
Stack warranty life: 3,000 hours
Built for rugged reliability, HYCUS XR2 is ideal for mobile and portable power applications requiring CE certification and robust performance.
Key features
Closed-Cathode Air-Cooled Design
Independent channels for reactant and cooling air improve thermal control and maintain stable output under varying environmental conditions.
Moisture-free operation eliminates the need for an external humidifier.
Titanium separators reduce weight while increasing stack durability.
Certified for Safety & Performance
CE Certified: Includes validation for performance, durability, and electromagnetic compatibility
Safety: Complies with IEC 62282-5-100 for portable fuel cell systems
EMC Compliance: IEC 61000-6-4:2019 & IEC 61000-6-2:2019
Shock & Vibration: IEC 62282-5-100 ANNEX B (UL2267 standard)
Durability & Longevity
Stack-level cumulative operation: 1,000+ hours with hundreds of on/off cycles
System-level operation: 720+ hours with over 100 cycles
Technical Specifications
Performance
- Rated Power: 1.5 kW
- Maximum Power: 2.0 kW
- Voltage Range: 50 ~ 55 VDC
Size & Configuration
- Full Weight: 55 kg
- Dimensions (W x L x H): 830 x 400 x 400 mm
- Custom case design available upon request
Fuel
- Fuel Type: Pure Hydrogen (>99.9%)
- Operating Pressure: 1 ~ 2 bar.g
- Hydrogen Consumption: 70 g/kWh
External Battery
- Requires a connected basic battery (battery not included)
- Battery options available through prior consultation
Application areas
Portable and Mobile Power Systems
Field Deployable Units
Backup Systems for Industrial and Remote Use
Contact us
TerraLIX provide advanced, application-ready air-cooled fuel cell solutions backed by deep industry knowledge and engineering experience. To learn more about how HYCUS XR2 can meet your specific power requirements, please fill out the contact form on this page.
Description
Technical Specfications
Downloads
Portable Fuel Cell System - 1.5 kW
The HYCUS XR2 model is a portable, closed-cathode type air-cooled fuel cell system designed to deliver stable power output and high durability, certified to meet rigorous European standards.
Rated power output of 1.5 kW (Max 2.0 kW)
Moisture-free operation with proprietary air channel design
Stack built with titanium separators for enhanced durability
Full system weight: 55 kg
Dimensions: 830 x 400 x 400 mm
Certified for performance, durability, and EMC compliance
Stack warranty life: 3,000 hours
Built for rugged reliability, HYCUS XR2 is ideal for mobile and portable power applications requiring CE certification and robust performance.
Key features
Closed-Cathode Air-Cooled Design
Independent channels for reactant and cooling air improve thermal control and maintain stable output under varying environmental conditions.
Moisture-free operation eliminates the need for an external humidifier.
Titanium separators reduce weight while increasing stack durability.
Certified for Safety & Performance
CE Certified: Includes validation for performance, durability, and electromagnetic compatibility
Safety: Complies with IEC 62282-5-100 for portable fuel cell systems
EMC Compliance: IEC 61000-6-4:2019 & IEC 61000-6-2:2019
Shock & Vibration: IEC 62282-5-100 ANNEX B (UL2267 standard)
Durability & Longevity
Stack-level cumulative operation: 1,000+ hours with hundreds of on/off cycles
System-level operation: 720+ hours with over 100 cycles
Technical Specifications
Performance
- Rated Power: 1.5 kW
- Maximum Power: 2.0 kW
- Voltage Range: 50 ~ 55 VDC
Size & Configuration
- Full Weight: 55 kg
- Dimensions (W x L x H): 830 x 400 x 400 mm
- Custom case design available upon request
Fuel
- Fuel Type: Pure Hydrogen (>99.9%)
- Operating Pressure: 1 ~ 2 bar.g
- Hydrogen Consumption: 70 g/kWh
External Battery
- Requires a connected basic battery (battery not included)
- Battery options available through prior consultation
Application areas
Portable and Mobile Power Systems
Field Deployable Units
Backup Systems for Industrial and Remote Use
Contact us
TerraLIX provide advanced, application-ready air-cooled fuel cell solutions backed by deep industry knowledge and engineering experience. To learn more about how HYCUS XR2 can meet your specific power requirements, please fill out the contact form on this page.
