FUEL CELL SYSTEMS

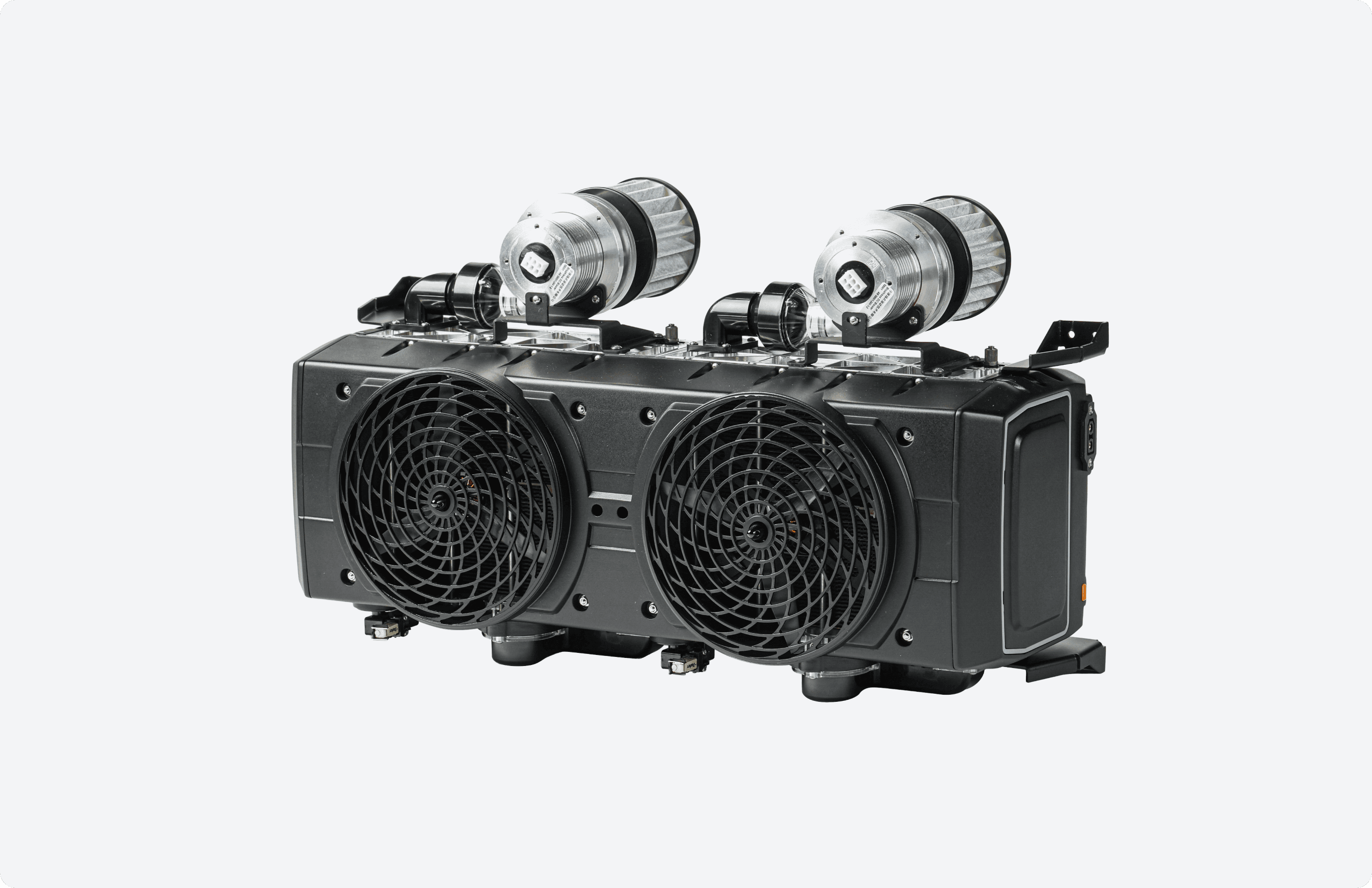

Closed-Cathode Air-Cooled Fuel Cell Powerpack
Summary
Closed-cathode type : Separation of channel for supply of reactant air and cooling air
The fuel cell powerpack rated output is 1.25, 1.6, 2.5, and 3.5 kW
HYCUS X series can be operated at minus 35 degrees Celsius
Composed of titanium separator
Stack warranty life time 3,000 hours
Moisture-free operation (No separate humidifier required)
CE-certificated product
FUEL CELL SYSTEMS
Closed-Cathode Air-Cooled Fuel Cell Powerpack
Summary
Closed-cathode type : Separation of channel for supply of reactant air and cooling air
The fuel cell powerpack rated output is 1.25, 1.6, 2.5, and 3.5 kW
HYCUS X series can be operated at minus 35 degrees Celsius
Composed of titanium separator
Stack warranty life time 3,000 hours
Moisture-free operation (No separate humidifier required)
CE-certificated product
FUEL CELL SYSTEMS
Closed-Cathode Air-Cooled Fuel Cell Powerpack
Summary
Closed-cathode type : Separation of channel for supply of reactant air and cooling air
The fuel cell powerpack rated output is 1.25, 1.6, 2.5, and 3.5 kW
HYCUS X series can be operated at minus 35 degrees Celsius
Composed of titanium separator
Stack warranty life time 3,000 hours
Moisture-free operation (No separate humidifier required)
CE-certificated product
FUEL CELL SYSTEMS
Closed-Cathode Air-Cooled Fuel Cell Powerpack
Summary
Closed-cathode type : Separation of channel for supply of reactant air and cooling air
The fuel cell powerpack rated output is 1.25, 1.6, 2.5, and 3.5 kW
HYCUS X series can be operated at minus 35 degrees Celsius
Composed of titanium separator
Stack warranty life time 3,000 hours
Moisture-free operation (No separate humidifier required)
CE-certificated product
Description
Technical Specfications
Downloads

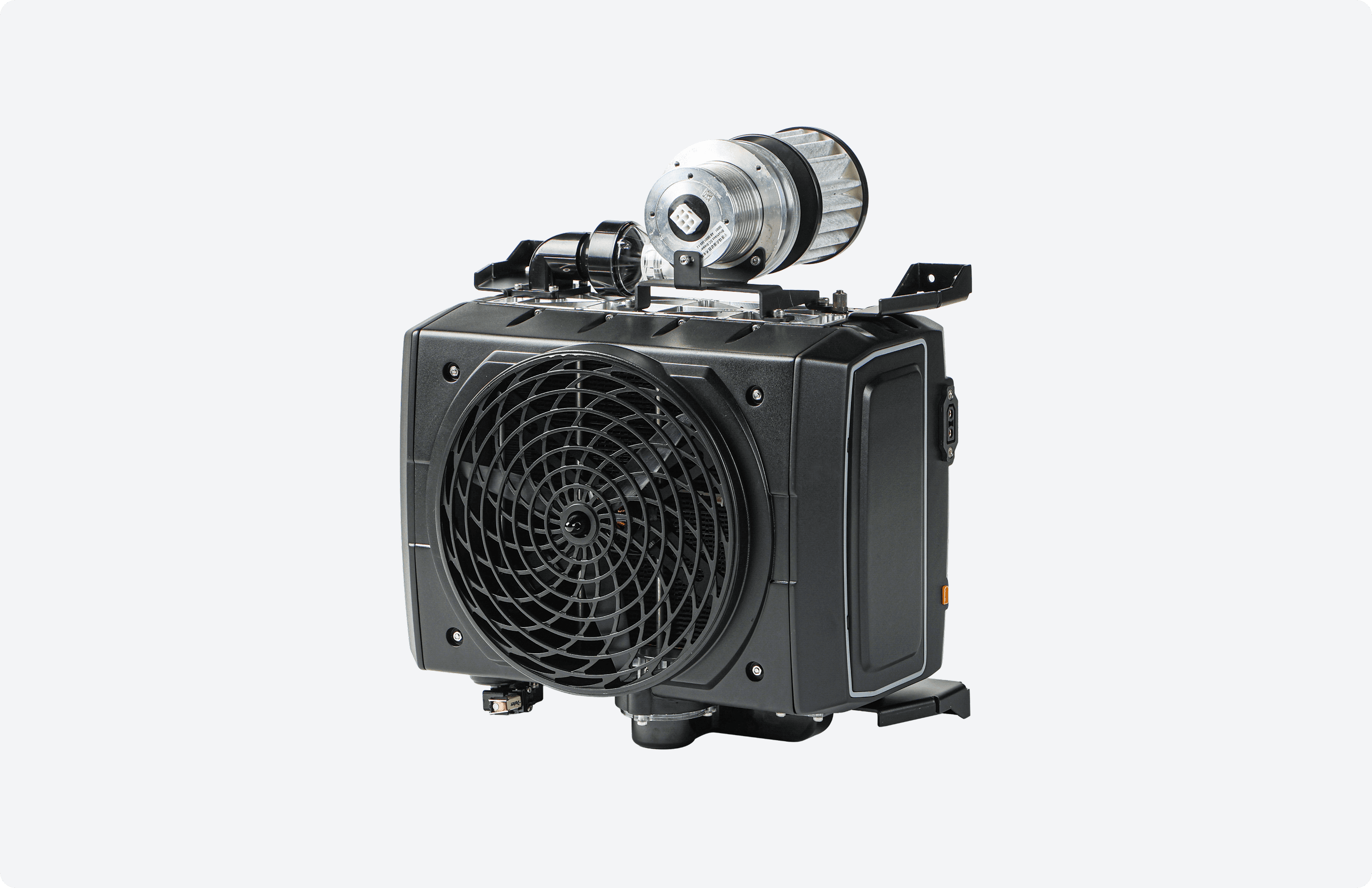

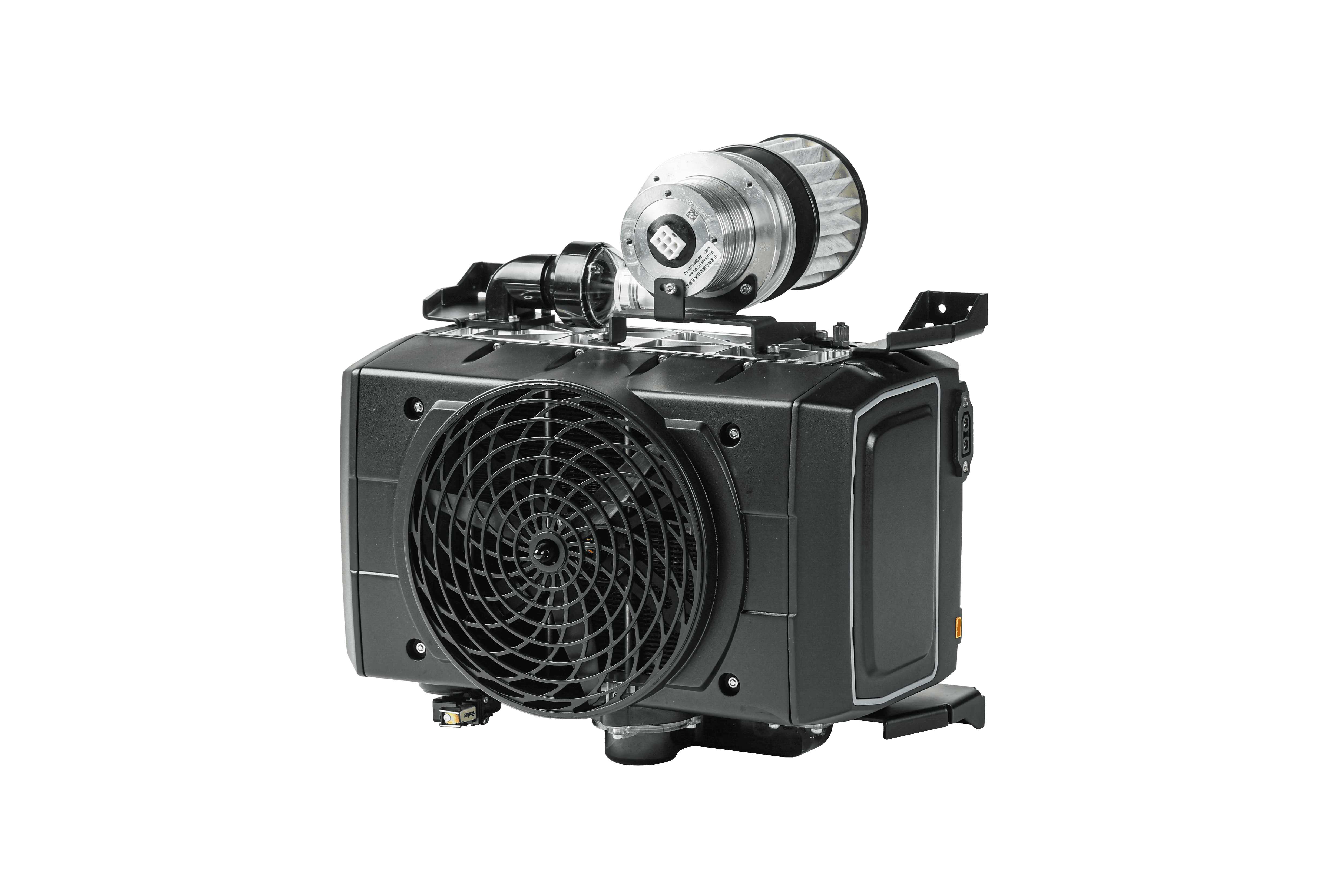

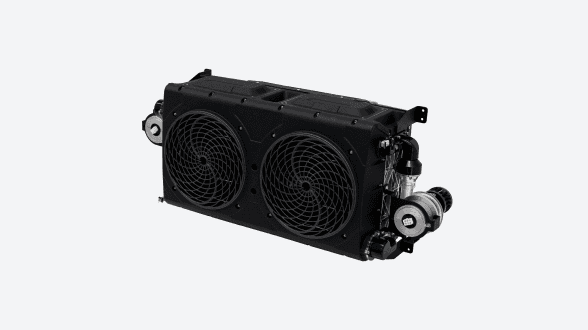

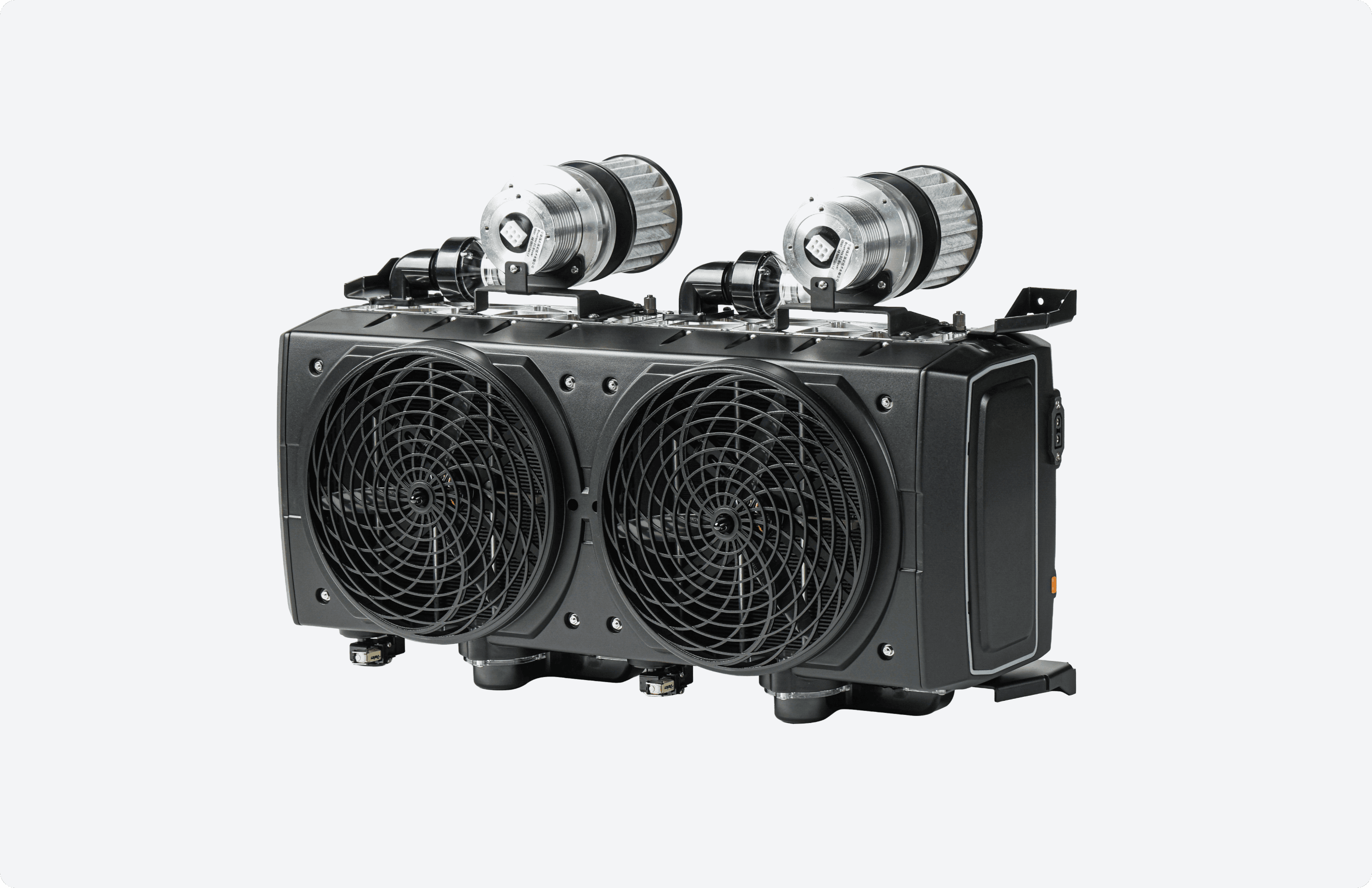

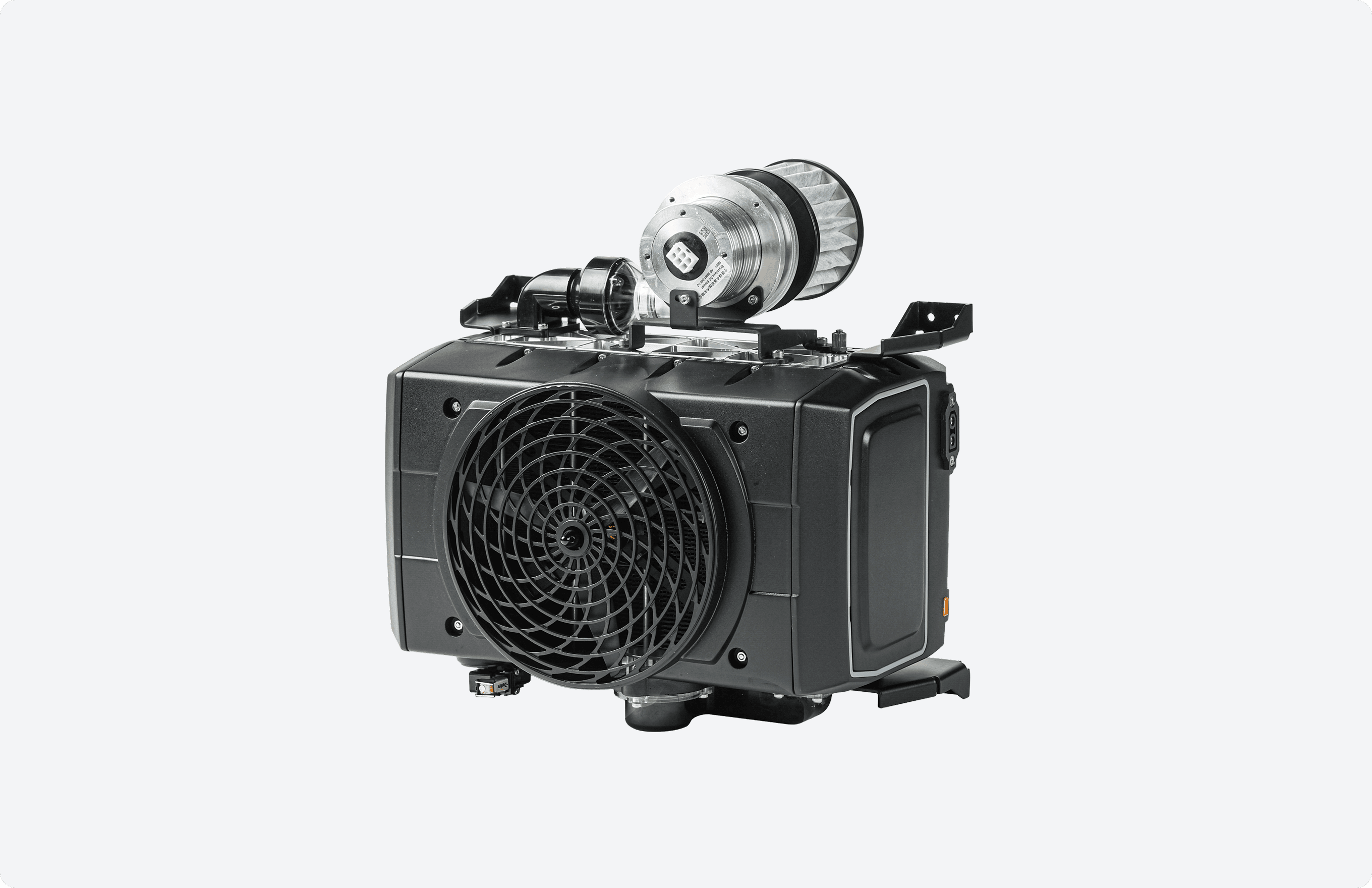

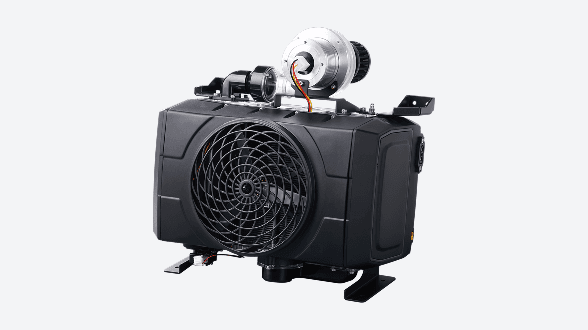

Closed-Cathode Air-Cooled Fuel Cell Powerpack
HYCUS X models consist of closed-cathode type air-cooled fuel cells designed for demanding environments and compact applications.
Highly reliable stack performance suitable for long-duration continuous operation.
Operates efficiently at temperatures down to –35 °C.
No external humidifier required, enabling true moisture-free operation.
Designed with titanium separators for enhanced durability and reduced system weight.
The system can be configured with a dedicated blower-based air supply, and external air filtration can be applied to effectively remove dust and particulate matter before air is supplied to the stack.
This architecture enables stable and reliable operation in dusty and polluted environments, such as industrial sites, urban areas with high PM levels, construction zones, and desert-like conditions.
HYCUS X fuel cells offer long-lasting performance with a stack warranty life of 3,000 hours.
Their moisture-free operation, compact design, and filter-enabled air management make them ideally suited for integration into mobile, portable, UAV, and remote power systems.
HYCUS X is available in 4 variants :
- HYCUS X1
- HYCUS X2
- HYCUS X3
- HYCUS X4
Key features
Closed-Cathode Design
Independent air channels for reactant and cooling air ensure stable performance and increased stack reliability.
Fully operational in environments as low as -35°C, ideal for harsh climates.
Designed for moisture-free operation, eliminating the need for separate humidification systems.
Durable Titanium Separators
Increases system durability and reduces overall weight.
Vibration evaluation : 5~200 Hz, random test, 3-axis for 21 hrs
Shock evaluation : 30 G, 3-axis for 10 times
Fuel inlet pressure : 1 ± 0.2 bar.g
Hydrogen consumption : 70 g/kWh
Start-up time : < 60 s
Available in different variants with rated power of 1.25, 1.6, 2.5 and 3.5 kW
Technical Specifications
HYCUS X1
- Rated power : 1.25 kW @ 0.5 A/cm²
- Rated voltage : 43.2 V @ 0.5 A/cm²
- Voltage range : 42 ~ 63 Vdc
- Mass : 3.1 kg
- Size (W x L x H) : 290 x 227 x 293 mm
HYCUS X2
- Rated power : 1.6 kW @ 0.6 A/cm²
- Rated voltage : 51 V @ 0.6 A/cm²
- Voltage range : 49 ~ 75.6 Vdc
- Mass : 3.4 kg
- Size (W x L x H) : 290 x 227 x 331 mm
HYCUS X3
- Rated power : 2. 5 kW @ 0.5 A/cm²
- Rated voltage : 86.4 V @ 0.5 A/cm²
- Voltage range : 84 ~ 126 Vdc
- Mass : 5.7 kg
- Size (W x L x H) : 506 x 227 x 293 mm
HYCUS X4
- Rated power : 3.5 kW @ 0.6 A/cm²
- Rated voltage : 102 V @ 0.6 A/cm²
- Voltage range : 98 ~ 151.2 Vdc
- Mass : 6.3 kg
- Size (W x L x H) : 509 x 224 x 332 mm
Application areas
Drones
AMR
Portable Power Systems
Mobile Backup Units
Remote Applications
Contact us
TerraLIX delivers customized fuel cell solutions backed by deep expertise in air-cooled systems and proven technical know-how. To explore how HYCUS X series can support your energy needs, please fill out the RFQ or contact form on this product page.
